01

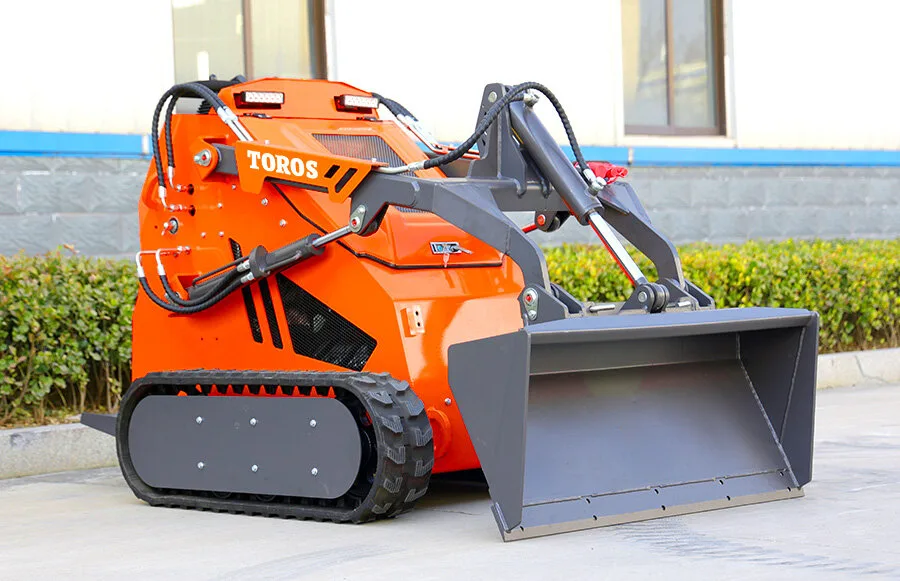

560 kg rated load
The 560 kg rated load is paired with an 800 kg maximum lifting force and 0.15 m³ standard bucket.
Mini machine guideSpecifications, dimensions and configuration details
TOROS TRS-480
TOROS · Compact skid steer
TRS-480
The TOROS TRS-480 is a tracked mini skid steer with a 560 kg rated load, 0.15 m³ bucket and petrol or diesel engine options.
- Rated load
- 560 kg
- Operating weight
- 920 / 930 / 950 kg
- Engine options
- B&S 3864 / Runtong R740D / KOOP KD2V80
- Output power
- 23 / 23 / 20 hp
Machine highlights
Key features and dimensions.
02

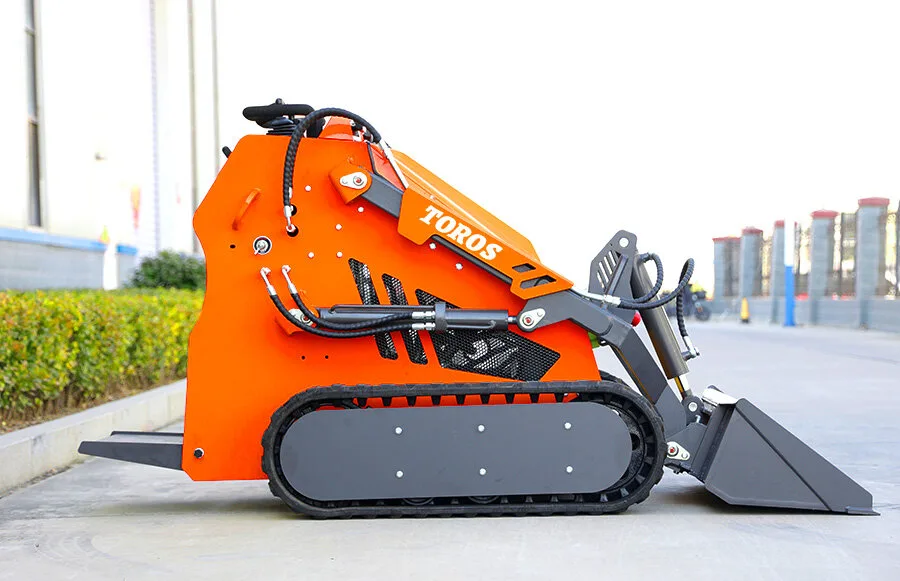

Three engine choices
Two 23 hp petrol configurations and one 20 hp KOOP diesel configuration are available.
03

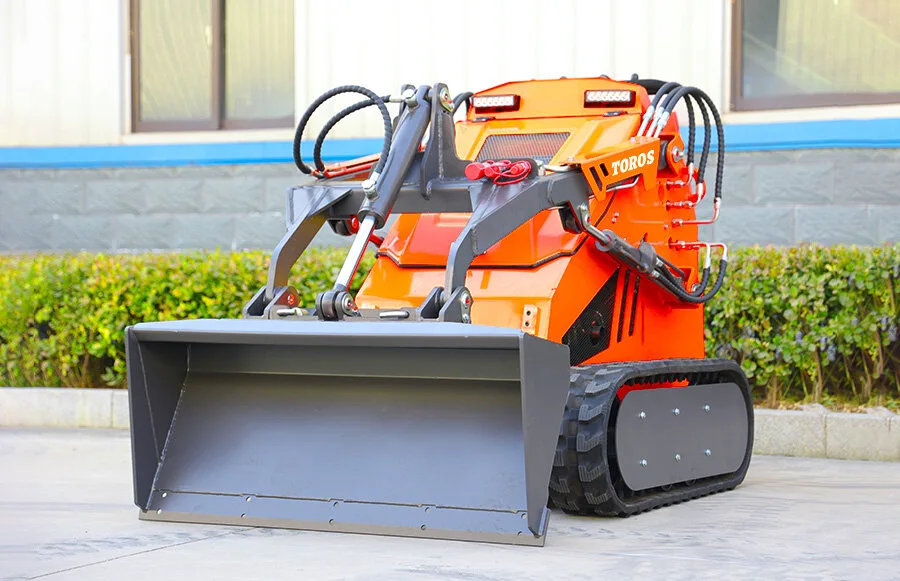

Tracked stand-on format
The compact tracked chassis uses a stand-on operating position for loading, landscaping and attachment work in tight areas.
Key specifications
TRS-480 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Rated load
- 560 kg
- Operating weight
- 920 / 930 / 950 kg
- Engine options
- B&S 3864 / Runtong R740D / KOOP KD2V80
- Output power
- 23 / 23 / 20 hp
- Fuel
- Petrol / Petrol / Diesel
- Bucket capacity
- 0.15 m³
- Maximum lifting force
- 800 kg
- Working speed
- 0–4.3 km/h
- Gradeability
- 30%
- Rated hydraulic pressure
- 17 MPa
- Lift time
- 4.6 sec
- Lowering time
- 3.2 sec
- Tipping time
- 2.4 sec
- Fuel tank
- 25 L
- Hydraulic tank
- 25 L
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Model details
Important specifications.
- Operating weight is 920 kg, 930 kg or 950 kg depending on the engine.
- The 800 kg figure is maximum lifting force; rated load is 560 kg.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
