R22

The R22 PRO is stability-focused for steadier, heavier work on farms and larger properties. It suits ongoing site preparation and maintenance where consistency and uptime matter.

Operating weight: 2,539 kg
Machine weight: 2,440 kg
Maximum power: 17.1 kW
Maximum digging depth: 2,293 mm

Ask about availability, attachments, delivery timing and configuration for Trinidad & Tobago.

Machine highlights

Designed around the work.

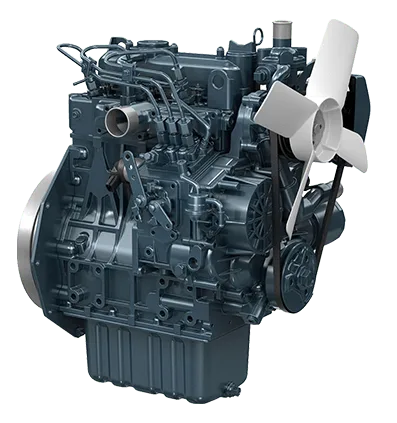

Kubota D1105 engine

The efficient, durable D1105 combines reliable output with low noise and approachable maintenance requirements.

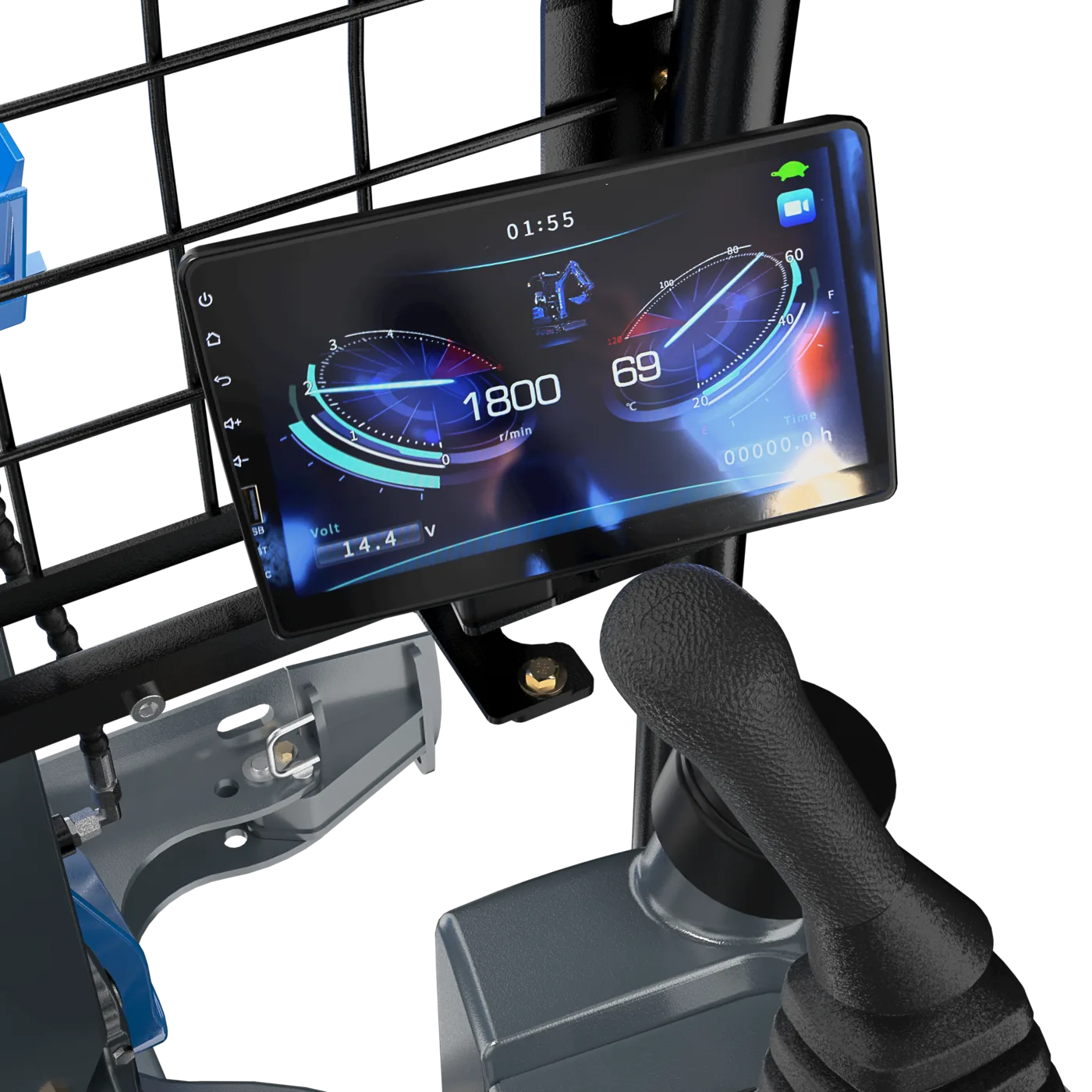

Smart display

A large operating screen presents engine, hydraulic, temperature, pressure and fuel information in real time.

Dual-button controls

Dedicated handle buttons provide intuitive boom swing and horn control, with room for future functional expansion.

Published essentials

R22 at a glance.

Published machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 2,539 kg
Machine weight: 2,440 kg
Maximum power: 17.1 kW
Maximum digging depth: 2,293 mm
Engine: Kubota D1105
Bucket capacity: 0.054 m³
Travel speed low / high: 0–1.5 / 0–2.8 km/h
Gradeability: 30%
Maximum digging force: 18.4 kN
Maximum digging radius: 4,255 mm
Maximum digging height: 3,761 mm
Maximum dumping height: 2,496 mm
Maximum deflection angle: 125°
Track extension range: 1,300–1,500 mm

Request a price

Is the R22 right for your job?

Tell us what you need to move, dig or carry. Include the worksite, material, access width and preferred attachments for a more useful response.
