01

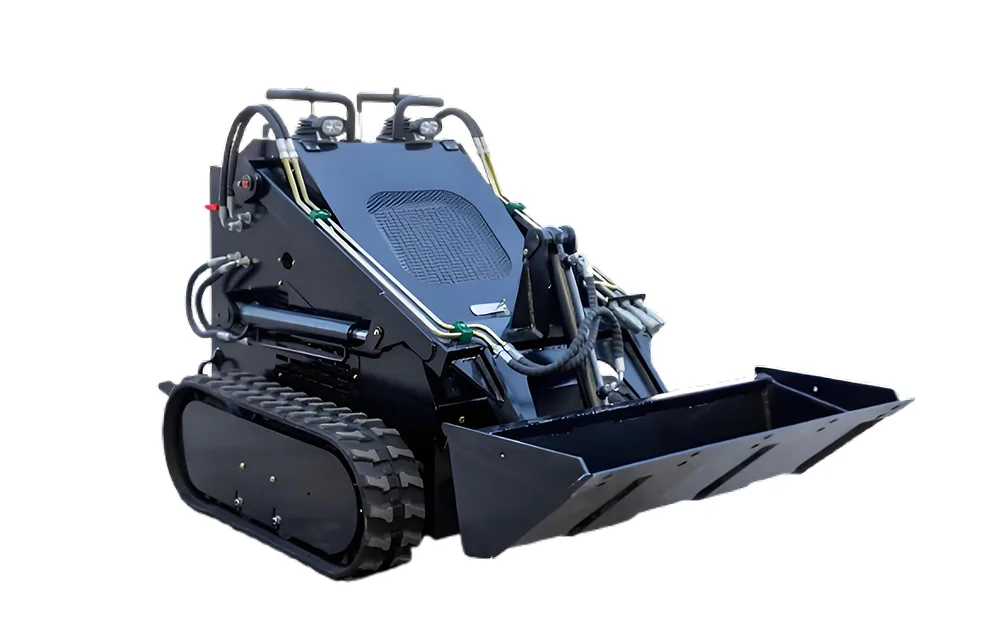

Compact tracked format
At 800 kg and 1,033 mm wide, the HT380 sits within the compact stand-on class rather than the full-size skid-steer category.
Mini machine guideSpecifications, dimensions and configuration details
HIGHTOP HT380
HIGHTOP · Compact skid steer
HT380
The HT380 is an 800 kg compact tracked skid steer with a stand-on operating position, 1,033 mm overall width and a 0.15 m³ bucket.
- Operating weight
- 800 kg
- Engine
- Briggs & Stratton petrol
- Maximum power
- 16–17 kW
- Bucket capacity
- 0.15 m³
Machine highlights
Key features and dimensions.
02
Lift geometry
The HT380 reaches a 2,115 mm maximum working height and 1,460 mm maximum dump height with the standard bucket.
03
0.15 m³ bucket
The standard bucket combines a compact footprint with a 1,460 mm maximum dump height for loading and material movement.
Key specifications
HT380 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 800 kg
- Engine
- Briggs & Stratton petrol
- Maximum power
- 16–17 kW
- Bucket capacity
- 0.15 m³
- Maximum working height
- 2,115 mm
- Maximum dump height
- 1,460 mm
- Overall width
- 1,033 mm
- Length with bucket
- 2,206 mm
- Overall height
- 1,205 mm
- Turning radius
- 1,307 mm
01
02
03
04
05
06
07
08
09
10
Model details
Important specifications.
- This page covers the base HT380 with the Briggs & Stratton petrol engine.
- HT380S and HTHY380T versions have different engine, track and capacity details.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
