HT10B

The HT10B is a one-tonne tracked mini excavator with a 930 mm overall width and a 1,750 mm digging depth. The configuration shown uses the 7 kW KOOP 292F engine.

Machine weight: 1,000 kg
Engine model: KOOP 292F
Maximum power: 7 kW
Bucket capacity: 0.025 m³

Machine highlights

Key features and dimensions.

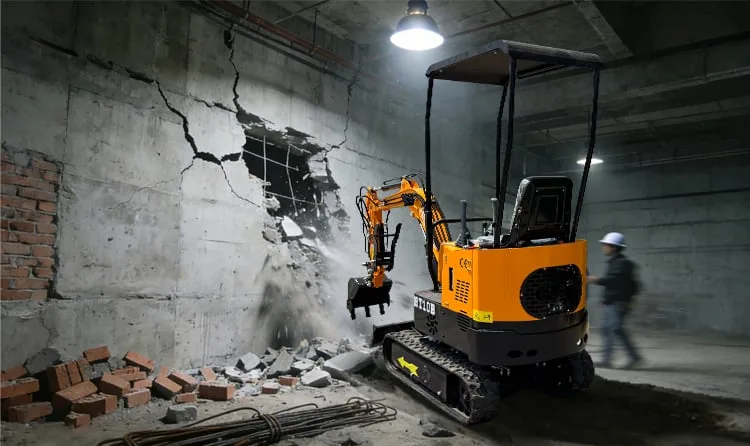

930 mm overall width

The 930 mm width makes access planning central to this machine’s appeal. Gateways, side passages and trailer setup should still be measured before purchase.

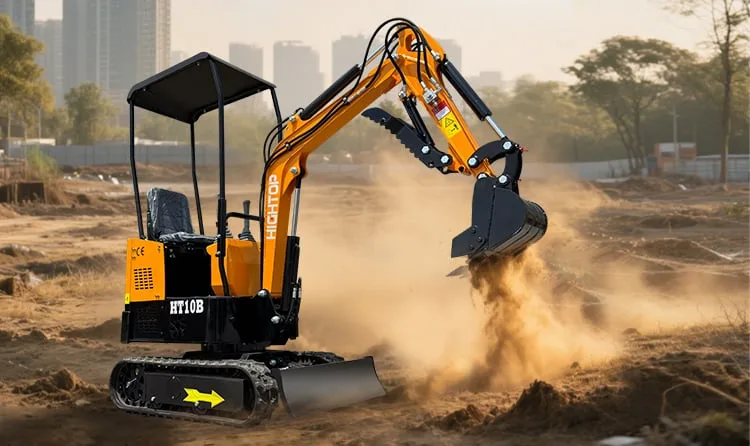

Digging envelope

The HT10B has a 1,750 mm maximum digging depth and 2,850 mm maximum digging radius in this configuration.

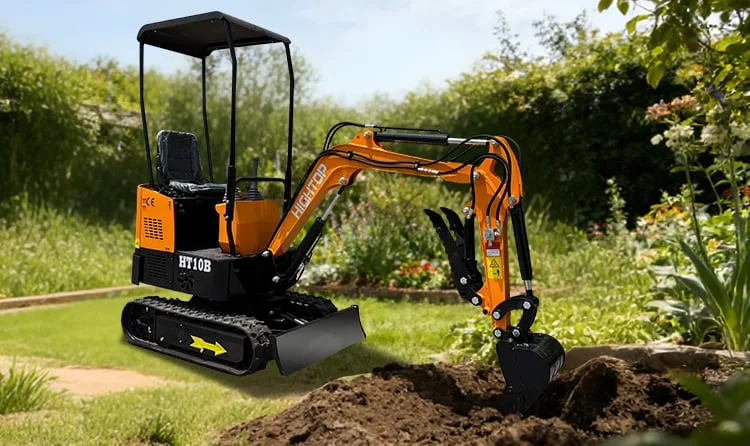

Engine options

The standard configuration shown uses the 7 kW KOOP 292F. Briggs & Stratton and Yanmar engines are also available.

Key specifications

HT10B at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Machine weight: 1,000 kg
Engine model: KOOP 292F
Maximum power: 7 kW
Bucket capacity: 0.025 m³
Bucket width: 380 mm
Maximum digging depth: 1,750 mm
Maximum digging radius: 2,850 mm
Travel speed: 1.5 km/h
Overall dimensions: 2,775 × 930 × 2,219 mm
Optional engines: Briggs & Stratton / Yanmar

Model details

Important specifications.

The HT10B is a separate model from the HT10.
Engine choices include the 7 kW KOOP 292F, Briggs & Stratton and Yanmar options.

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.

Use the buying checklist
